Description

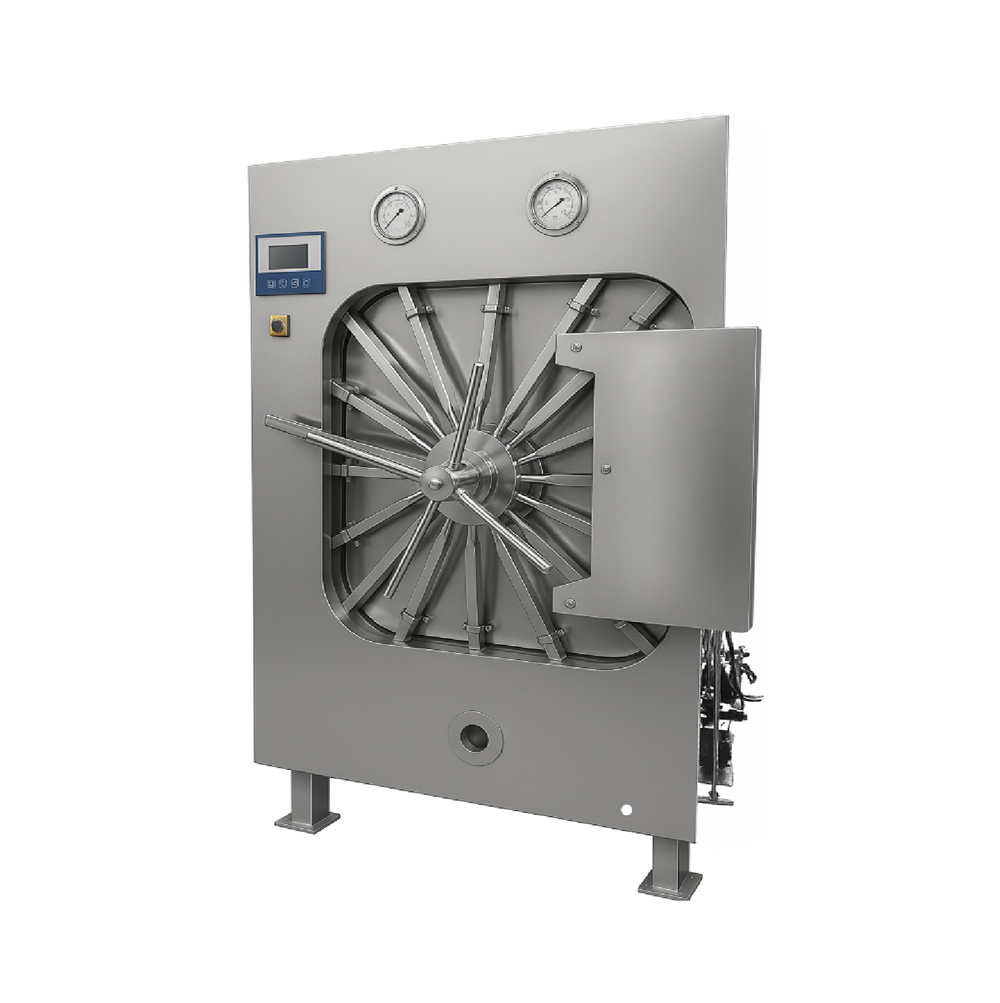

Our Horizontal Rectangular Autoclave is engineered for safe, efficient, and uniform sterilization in hospitals, laboratories, pharmaceutical units, and industrial facilities. Designed with premium SS 304 stainless steel and advanced safety systems, it ensures durability, performance, and operator safety.
Robust Construction
-
Triple-walled rectangular chamber
-
Inner chamber, door lid, jacket, boiler & outer cover made of SS 304
-
Mounted on sturdy heavy-duty M.S. painted square stand
-
Smooth rounded chamber corners for easy cleaning
-
Single / Double hinged door with radial locking system
-
Separate steam generator positioned below the main body
-
Pressure locking system prevents door opening under pressure
-
High tensile joint-less silicon gasket ensures zero leakage
Energy Efficient Design
-
Industrial-grade energy-efficient heaters reduce power consumption
-
High-grade fiber / mineral glass wool insulation between jacket and outer wall
Advanced Safety Features
-
Chamber pressure gauge & jacket compound gauge
-
Spring-loaded safety valve
-
Manual steam release ball valves for jacket & chamber
-
Automatic vacuum breaker
-
Automatic pressure control switch (cuts power at 18–20 PSI)
-
Low water level cut-off device for heater protection
Control System Options
LCD display for set & process values
-
Automatic digital timer
-
Heater auto shut-off with alarm at cycle completion
Optional PLC Based Fully Automatic Control
-
Electronic solenoid valve operation
-
Steam injection & exhaust control
-
Dry sterilization function
-
HMI display interface
-
Digital pressure gauge with electronic transducer
-
Data logging feature
-
Validation test program available
Applications
-
Hospitals & Medical Centers
-
Pharmaceutical Manufacturing
-
Research Laboratories
-
Industrial Sterilization Units
Key Features
-
SS 304 Stainless Steel Construction
-
Triple Wall Design
-
Radial Locking Safety Door
-
Separate Steam Boiler
-
Automatic Pressure & Temperature Control
-
PLC / PID Control Options
-
Energy Efficient Operation
- Heavy Duty Industrial Model
Specification
| Model | Inner Dimension (mm) | Capacity (Ltrs.) | Heater Load | Sterilization Temp. & Pressure | Operating Pressure |
|---|---|---|---|---|---|
| FF-20 (RA) | 450 x 450 x 900 | 200 | 12 kW | 1.2 Kg/cm² (15–18 psi) at 121°C | From 10 psi to 22 psi |
| FF-25 (RA) | 450 x 600 x 900 | 250 | 12 kW | ||
| FF-35 (RA) | 600 x 600 x 900 | 350 | 15 kW | ||
| FF-45 (RA) | 600 x 600 x 1200 | 450 | 18 kW | ||
| FF-55 (RA) | 600 x 600 x 1500 | 550 | 22 kW | ||
| FF-65 (RA) | 600 x 600 x 1800 | 650 | 30 kW |
